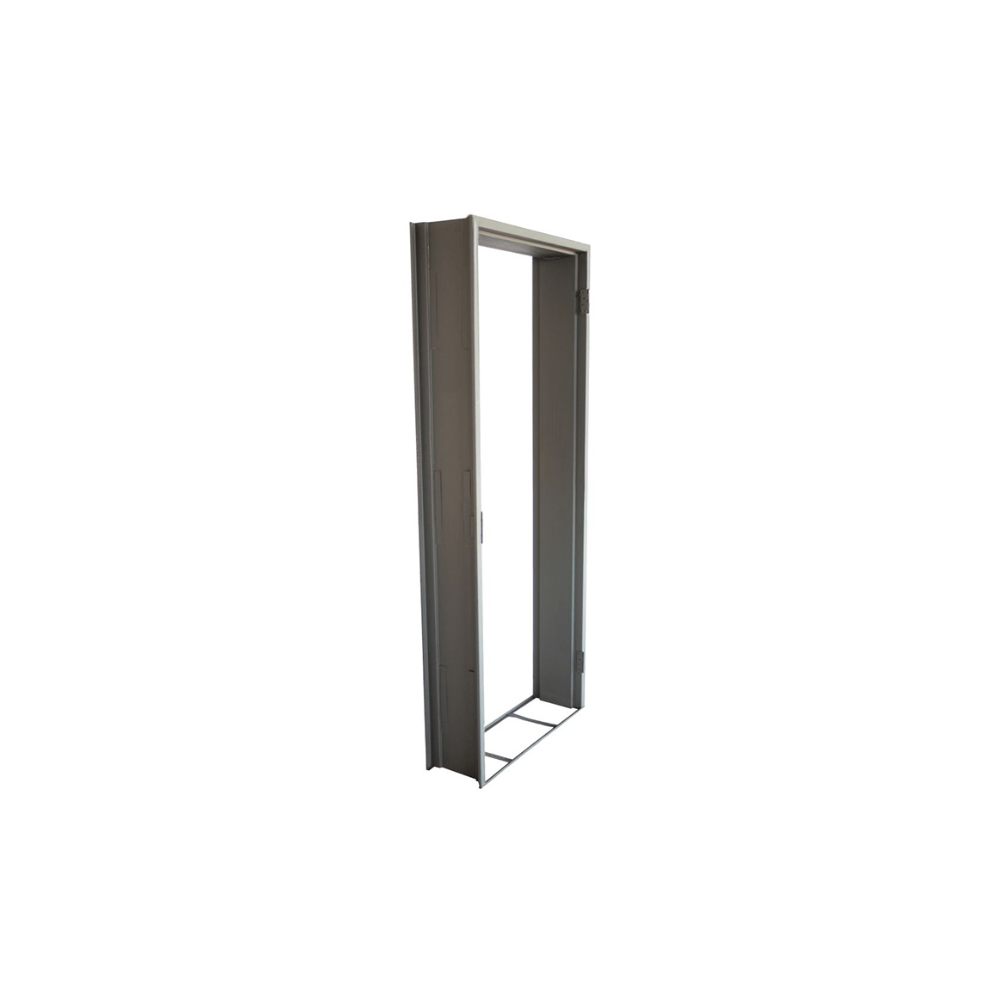

Steel Door Frames
Robmeg Heavy & Light Duty Steel Door Frames
Manufactured for durability and strength, Robmeg Steel Door Frames are available in standard heavy-duty and light-duty designs. Perfect for residential, commercial, and industrial projects.
| Product | Dimensions | Duty |
|---|---|---|
| Steel Door Frame | D230 × W813 × H2032 mm | Heavy Duty |
| Steel Door Frame | D150 × W813 × H2032 mm | Heavy Duty |
| Steel Door Frame | D115 × W813 × H2032 mm | Heavy Duty |
| Steel Door Frame | D250 × W813 × H2032 mm | Heavy Duty |
| Steel Door Frame | D115 × W813 × H2032 mm | Light Duty |
Cutting & Bending – Up to 3 mm
Fast, accurate guillotine cutting and press-brake bending for thin sheet components, flashings and general fabrication. We prioritise clean edges, consistent bend angles and quick turnaround.
Capabilities
- Materials: Mild Steel (HR/CR), Galvanized, Chromadek® / pre-painted steel (with film) *
- Thickness: up to 3.0 mm (profile-dependent)
- Cuts: straight guillotine shearing, square to edge
- Bends: single & multi-bend parts, hems, simple channels/angles
- Services: cut-to-size, blanking from standard sheets, simple notch/mitre shear
* Pre-painted/Chromadek is best processed with protective film. We’ll confirm handling on your quote.
Typical Capacity & Guidelines
| Item | Typical Value | Notes |
|---|---|---|
| Max sheet thickness | Up to 3.0 mm | Steel; other metals on request |
| Max bend length | ~2.5–3.0 m | Shop-dependent; we’ll confirm at quote |
| Cut tolerance | ~±1.0 mm (typical) | Depends on material & part size |
| Bend angle tolerance | ~±1° (typical) | Improves with larger bend flanges |
| Recommended inside radius | ≈ material thickness | Helps reduce cracking/marking |
File Formats & Ordering
| What to Send | Details |
|---|---|
| Drawings | PDF for quoting; DXF/DWG for production (if available). Clear dimensions & units. |
| Material spec | Grade (e.g. CQ / ISQ230 / pre-paint), thickness, finish (oiled/film). |
| Bend call-outs | Angle, inside radius, up/down direction, flange lengths. |
| Quantities & lengths | Number of parts, if parts come from full sheets, and required delivery date. |
Notes: Specs are typical working guidelines for up-to-3 mm sheet work. Final capacities, tooling and tolerances will be confirmed on your official quote after we review drawings/samples.

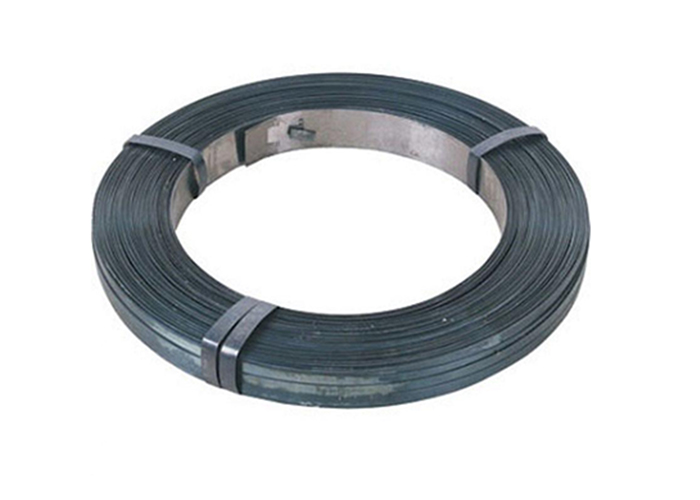

Steel Strapping
High-strength steel strapping for securing pallets, pipes, coils and heavy loads. Available in standard-duty and high-tensile grades with de-burred/safe edges.
Features
- Grades: Standard-Duty (blued/black) and High-Tensile
- Edges: De-burred / safety edges
- Finishes: Black/Blue, Zinc (on request)
- Coils: Ribbon wound & Oscillated (on request)
- Applications: Timber, bricks/blocks, steel products, export loads
Sizes & Approximate Breaking Strength
| Width | Thickness | Finish / Grade | Approx. Break Strength | Core |
|---|---|---|---|---|
| 12.7 mm (½") | 0.5–0.6 mm | Standard-Duty | 3.0–4.2 kN | 200 mm |
| 16 mm (⅝") | 0.5–0.7 mm | Standard-Duty / High-Tensile | 4.0–6.0 kN | 200 mm |
| 19 mm (¾") | 0.6–0.9 mm | Standard-Duty / High-Tensile | 6.0–9.0 kN | 200 mm |
| 25 mm (1") | 0.8–1.0 mm | High-Tensile | 10–13 kN | 406 mm |
| 32 mm (1¼") | 0.8–1.0 mm | High-Tensile | 13–16 kN | 406 mm |
Seals & Tools
- Seals: Open, Closed, Push-type (to match strap width)
- Tools: Manual tensioners & sealers, combination tools, cutters, dispensers
- Accessories: Edge protectors, corner boards

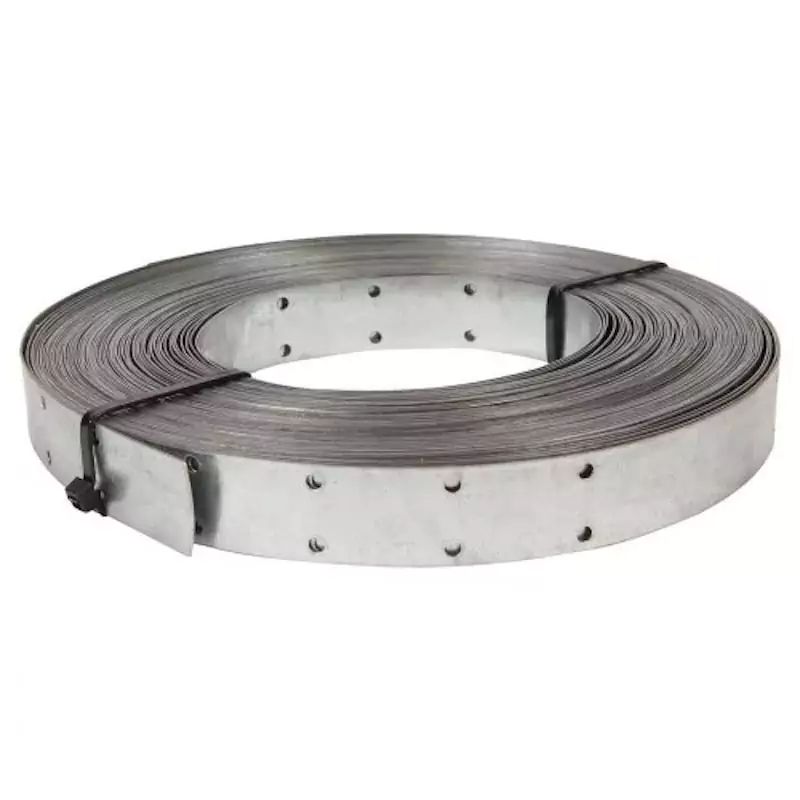

Hoop Iron
Hoop Iron is a galvanized steel strapping used widely in the construction industry for reinforcing brickwork and structural ties. It provides additional strength, crack control, and stability for masonry and structural applications.
Applications
- Brickwork reinforcement (tying walls & masonry)
- Roof truss bracing and structural restraint
- General construction tying and support
- Packing & strapping heavy loads
Sizes Available
| Width | Thickness | Finish | Roll Length |
|---|---|---|---|
| 20 mm | 0.8–1.6 mm | Galvanized | 20–30 m |
| 25 mm | 0.8–1.6 mm | Galvanized | 20–30 m |
| 30 mm | 0.8–1.6 mm | Galvanized | 20–30 m |
Features
- Hot-dip galvanized for corrosion resistance
- Flexible and easy to cut/bend on site
- Cost-effective reinforcement option
- Meets standard building requirements

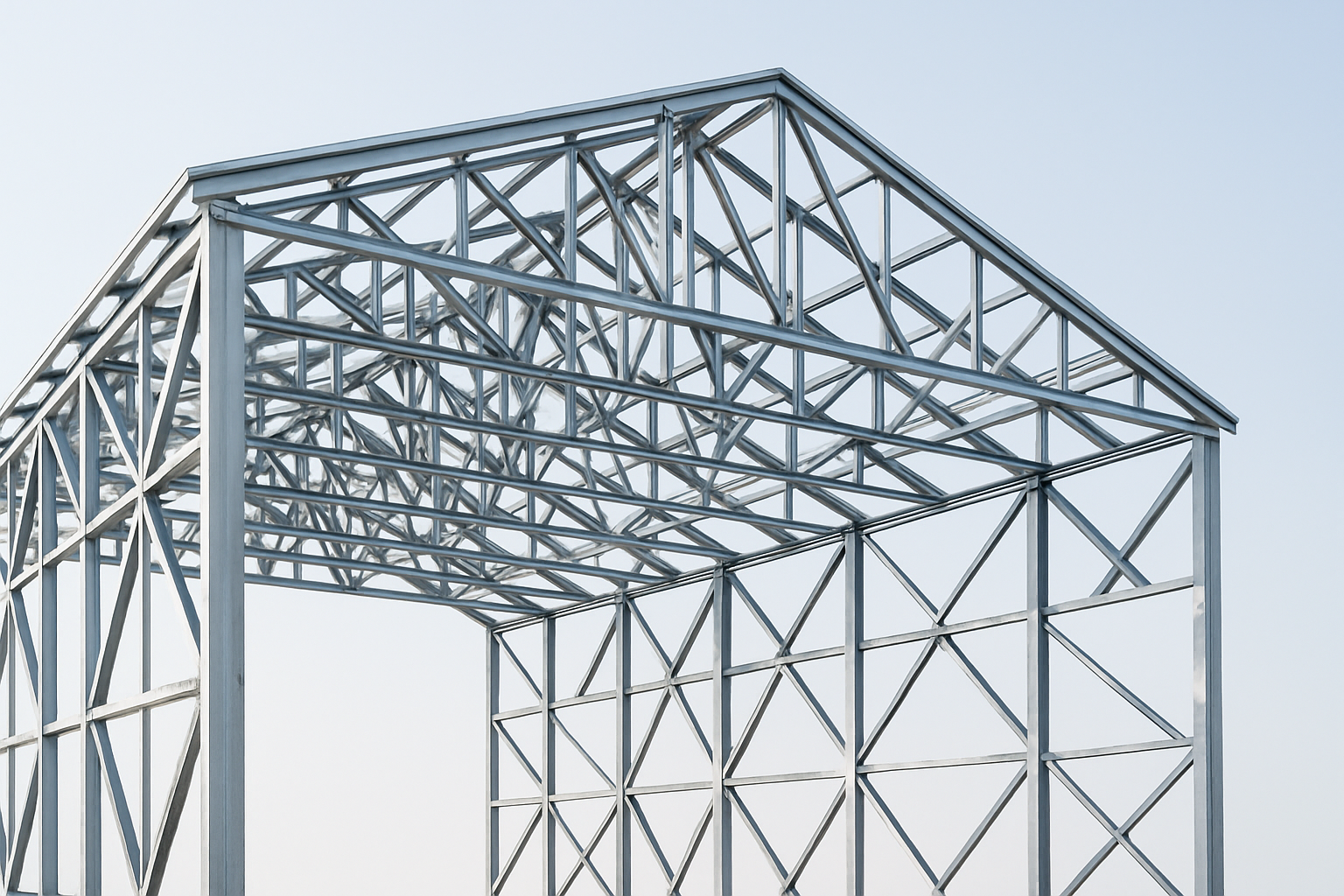

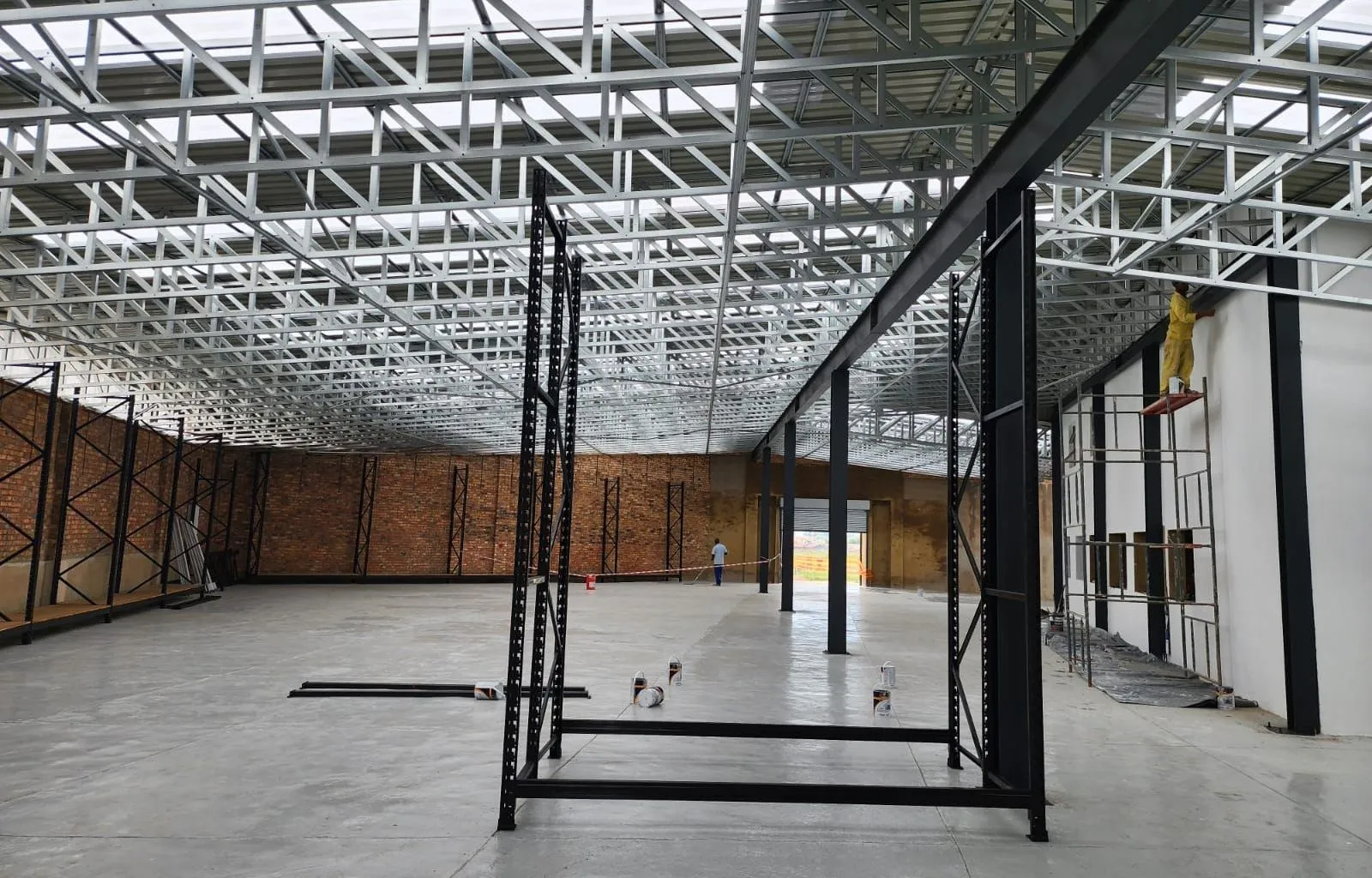

Roof Trussing
Lightweight steel roof trusses are precision-engineered for strength, durability, and design flexibility. Suitable for residential, commercial, and industrial projects, they offer faster installation and long-term performance compared to traditional timber.
- High strength-to-weight ratio
- Corrosion-resistant galvanized steel
- Custom designs for any span
- Low maintenance & eco-friendly
Structures – Manufactured, Supplied & Installed
Woman of Steel provides complete structural steel solutions — from design and fabrication to supply and professional installation. We deliver tailored structures for industrial, commercial, agricultural, and residential applications.
Manufactured In-House
Cut, rolled, and welded using premium mild steel and galvanised materials, ensuring unmatched strength and durability.
Supplied Nationwide
Delivered across South Africa, either as full kits for assembly or as ready-to-install complete structures.
Installed by Professionals
Expert teams handle safe and precise on-site erection, fully compliant with engineering and safety standards.
Applications
- Warehouses & factories
- Roof structures & canopies
- Carports & shade structures
- Agricultural sheds & barns
- Mezzanine floors & platforms
- Security & boundary structures
